Rapid SL 3-in-1 set for WC, 0.82 m installation height
Product Number
38761000
EAN
4005176841620
Colour
chrome
Product Description
- with flushing cistern 6 - 9 l
- consists of:
- Rapid SL element for WC (38 526 000)
- Skate Air flush plate, chrome, horizontal installation (38 506 000)
- Rapid SL wall brackets (38 558 00M)
Technical Information
CAD Data

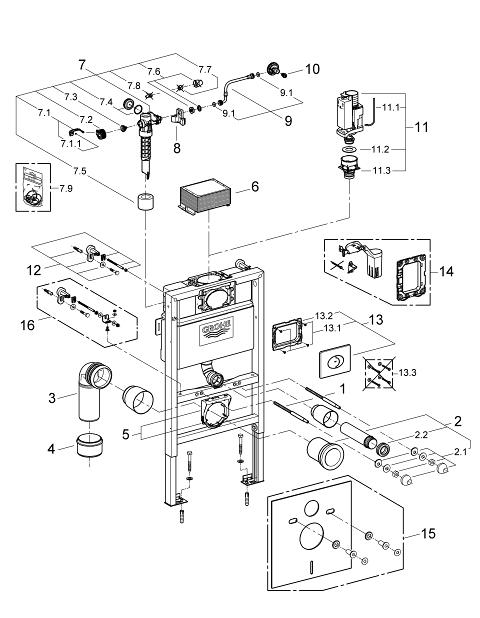

Spare Parts
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Threaded bolt, 2 pcs.f.Uniset | 4276400M |
| 2 | WC inlet and outlet connecting set | 37311K00 |
| 2.1 | Basin fastening | 43511SH0 |
| 2.2 | Connector | 37119000 |
| 3 | PP-outlet bend Ø 90 mm | 42327000 |
| 4 | 4" Outlet Adaptor F Rapid Sl | 42242000 |
| 5 | Support for outlet bend | 42243000 |
| 6 | inspection shaft.for flushing cistern 0,82 m | 42326000 |
| 7 | Filling valve | 37095000 |
| 7.1 | Lever | 43734000 |
| 7.1.1 | Ball seal dia. 9x6.8 mm | 4377000M |
| 7.2 | Valve head | 43536000 |
| 7.3 | Membrane | 4375800M |
| 7.4 | Screw cap | 43735000 |
| 7.5 | Valve float, 5 pcs. | 4379100M |
| 7.6 | Dummy plug and escutcheon cap | 37125000 |
| 7.7 | Compression nut | 43258000 |
| 7.8 | Throttle | 42356000 |
| 7.9 | Repl. kit f. seal | 43722000* |
| 8 | Support device | 42195000 |
| 9 | Overflow Sleeve | 43325000 |
| 9.1 | Seat washer | 0319100M |
| 10 | Headpart | 42385000 |
| 11 | AV1 complete | 42314000 |
| 11.1 | pneumatic hose | 42319000 |
| 11.2 | Ball seal dia. 9x6.8 mm | 42310000 |
| 11.3 | Valve seat for GD2 | 42315000 |
| 12 | Rapid SL Wall union | 3855800M |
| 13 | Wall plate | 38506000 |
| 13.1 | Screw dia. 4x52 mm | 6636200M |
| 13.2 | Frame | 43207000 |
| 13.3 | Fixing set | 4308500M* |
| 13.4 | Fixing set | 4215800M* |
| 14 | GROHE Fresh retro-fit set | 38796000* |
| 15 | Set for noise protection | 37131000* |
| 16 | Rapid SL mounting angle | 38733000* |
