Rapid SL 4-in-1 set for WC, 1.13 m installation height
Product Description
GROHE Rapid SL installation system – install your wall-hung toilet with easy
Providing daily security and comfort, the GROHE Rapid SL 4-in-1 installation set for wall-hung toilets delivers total strength, as well as being very easy to fit. The steel frame is certified to hold loads of over 400 kg for ultimate stability and it can be installed in front of the stud wall or free-standing in combination with an empty frame element. Fitting takes next-to-no-time thanks to the GROHE QuickFix system, which requires no tools to connect hose, inspection shaft and water supply. The GROHE EcoJoy dual flush system is kinder to the environment, reducing water consumption by up to 50%. Noise transmission to the building is kept to a minimum thanks to GROHE Whisper technology, engineered with low-noise fittings and separate plumbing. This set comes complete with wall brackets and the attractive Nova Cosmopolitan chrome flush plate.
- with flushing cistern GD 2, 6 - 9 l
- consists of:
- Rapid SL element for WC (38 528 001)
- Nova Cosmopolitan flush plate, chrome (38 765 000)
- Rapid SL wall brackets (38 558 00M)
- including WC set for noise protection (37 131 000)
Technical Information

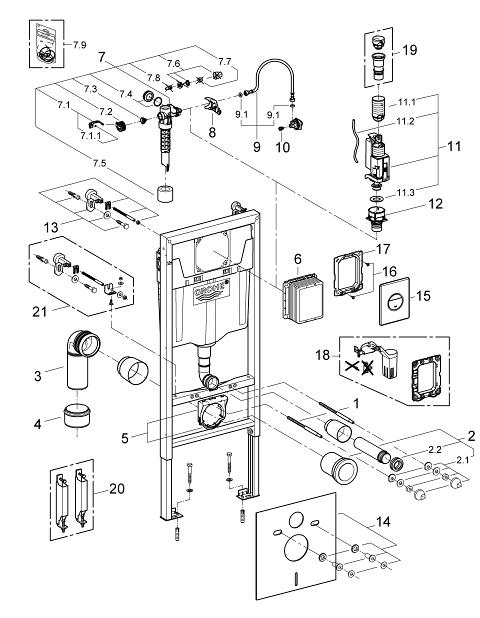

Spare Parts
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Threaded bolt | 4276400M |
| 2 | WC inlet and outlet connecting set | 37311K00 |
| 2.1 | Basin fastening | 43511SH0 |
| 2.2 | Connector | 37119000 |
| 3 | PP-outlet bend Ø 90 mm | 42327000 |
| 4 | 4" Outlet Adaptor F Rapid Sl | 42242000 |
| 5 | Support for outlet bend | 42243000 |
| 6 | Inspection shaft | 66791000 |
| 7 | Filling valve | 37095000 |
| 7.1 | Lever | 43734000 |
| 7.1.1 | Ball seal dia. 9x6.8 mm | 4377000M |
| 7.2 | Valve head | 43536000 |
| 7.3 | Membrane | 4375800M |
| 7.4 | Screw cap | 43735000 |
| 7.5 | Valve float, 5 pcs. | 4379100M |
| 7.6 | Dummy plug and escutcheon cap | 37125000 |
| 7.7 | Compression nut | 43258000 |
| 7.8 | Throttle | 42356000 |
| 7.9 | Repl. kit f. seal | 43722000* |
| 8 | Support device | 42246000 |
| 9 | Tube | 42233000 |
| 9.1 | Seat washer | 0319100M |
| 10 | Headpart | 42385000 |
| 11 | AV1 complete wiht pipe extension | 42320000 |
| 11.1 | Extension for overflow pipe | 42313000 |
| 11.2 | pneumatic hose | 42319000 |
| 11.3 | Ball seal dia. 9x6.8 mm | 42310000 |
| 12 | Valve seat for GD2 | 42315000 |
| 13 | Wall union | 3855800M |
| 14 | Set for noise protection | 37131000 |
| 15 | top plate w. push button | 42375000 |
| 16 | Screw dia. 4x52 mm | 6636200M |
| 17 | Frame | 43207000 |
| 18 | Retro-fit set | 38796000* |
| 19 | 4,5 l Adapter for GD2 | 42333000* |
| 20 | Accessory | 38779000* |
| 21 | Xtra wall brackets, flexible placing | 38733000* |
