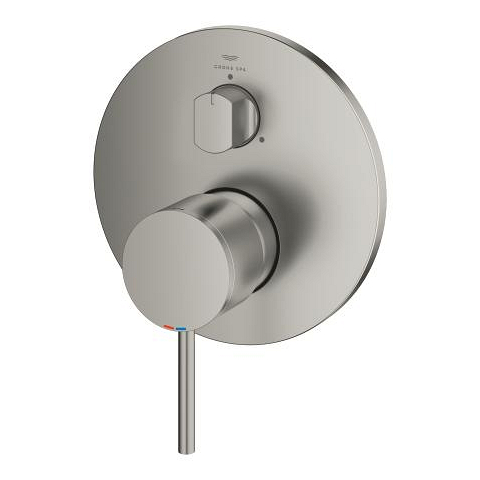

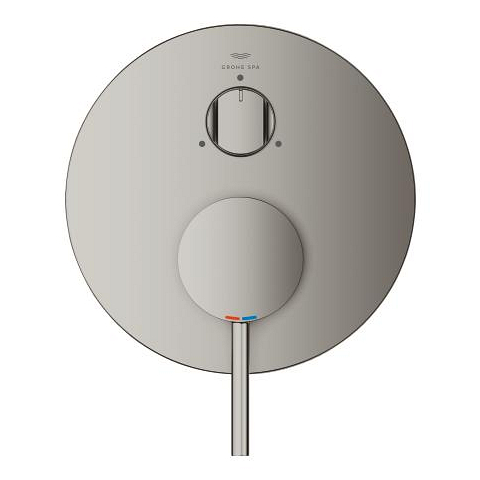

Atrio Single-lever mixer with 3-way diverter

The GROHE Atrio single-lever mixer with 3-way diverter in stunning satin steel – tactile control to effortlessly switch between spray types and bath function
This GROHE Atrio single-lever mixer trim in a chic and hard-wearing satin steel finish provides the perfect final element for your shower or bathtub. GROHE’s Atrio presents an iconic silhouette, design with timeless, precise simplicity. The tactile design invites you to interact, with a metal escutcheon and lever offering a feeling of solidity, and the slim profile – the wall plate has a 158 mm diameter and a depth of only 10 mm – will appeal to design purists. It comes with an innovative 3-way diverter that lets you switch effortlessly between three different outlets – for example the hand shower and two spray options of the head shower, for which the GROHE Rainshower SmartActive 2-spray head showers are an ideal complement. You can enjoy smooth, precise control of flow and temperature via the tactile metal lever and the durable ceramic cartridge inside. GROHE Atrio – the icon of elegance and precision. This trim is designed to be installed with the GROHE Rapido SmartBox (35600000/35604000), sold separately. And don’t worry: This combined solution for concealed installation is 100% safe against leakage.
- final installation set for
- GROHE Rapido SmartBox (35 600/35 604)
- GROHE SilkMove 46 mm ceramic cartridge
- GROHE Long-Life finish
- GROHE FastFixation escutcheon with covered shaft sealing and covered fixing
- metal escutcheon, retroactively 6° adjustable
- metal lever
- 3-way diverter
- flow performance: outlet A = 27 l/min, outlet B = 27 l/min, outlet C = 27 l/min
- without floor installation plate
Technical Product Information
CAD Data
Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | lever | 48443MS0 |
2 | diverter knob | 48447MS0 |
3 | escutcheon | 49250MS0 |
4 | Mounting plate | 49094000 |
5 | cap | 02693MS0 |
6 | Cartridge | 46048000 |
7 | Diverter | 48448000 |
8 | Ball seal dia. 9x6.8 mm | 48360000 |
9 | Temperature limiter | 46308000* |
10 | Universal extension set single-lever mixers, 25 mm | 14056000* |
11 | Universal extension set single-lever mixers, 50 mm | 14057000* |
