Concetto Single-lever sink mixer 1/2″
chrome
GROHE Concetto kitchen tap – with pull-down spray head for maximum operating area!
A perfect blend of minimalist design and maximum functionality! This GROHE Concetto kitchen mixer has a straight medium high spout that swivels smoothly through 100° for a flexible operating radius while preventing it from bumping into any surrounding cupboards or walls. It also has a pull-down spray head so cleaning and filling even the largest pans is quick and easy. Engineered with GROHE SilkMove technology, it has a ceramic cartridge that ensures a precise and effortless control of water temperature and flow. With its clean, elegant lines and gleaming GROHE StarLight chrome, which is easy to clean and retains its pristine look even after years of use, it will make a stunning addition to your kitchen. Thanks to our easy installation system, you'll have it fitted in no time!
- medium spout
- single hole installation
- GROHE Long-Life finish
- GROHE SilkMove 35 mm ceramic cartridge
- pull out mousseur spout
- adjustable flow rate limiter
- swivelling cast spout
- swing area100 Ø
- Protected against backflow
- flexible connection hoses
- rapid-installation-system
- maximum flow rate (at 3 bar): 7.5 l/min
- minimum pressure 1,0 bar
Technical Product Information
CAD Data

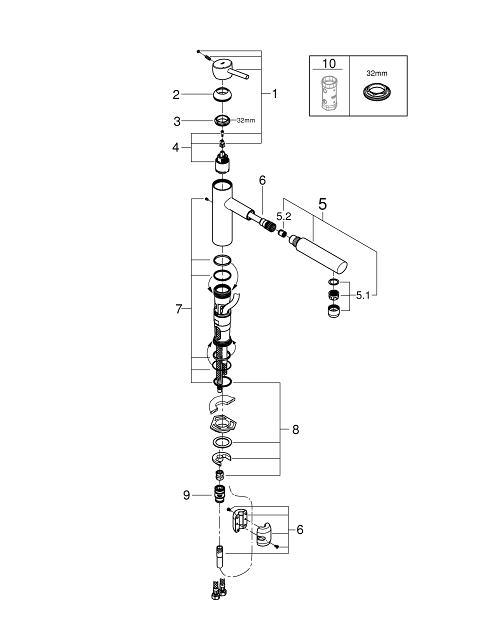

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46822000 |
| 2 | Shield | 46492000 |
| 3 | Screw ring | 46815000 |
| 4 | Cartridge | 46374000 |
| 5 | Pull out shower | 48532000 |
| 5.1 | Mousseur | 06574000 |
| 5.1.1 | Repl.kit f.Mousseur M22x1 and M24x1 | 45002000 |
| 5.2 | Non-return valve | 08565000 |
| 6 | Hose for sink mixer with pull-out dual spray or mousseur | 48293000 |
| 7 | Repl. kit f. seal | 46760000 |
| 8 | Shank mounting kit | 46346000 |
| 8.1 | Temperature limiter | 04174000 |
| 9 | Snap coupling | 46338000 |
| 10 | Socket spanner | 19332000* |
